Fruit Vegetable Processing Machine
Created with Pixso.

500kg/H-3000kg/H Bubble Cleaning Machine Fruit And Vegetable Cleaning Machine

500kg/H-3000kg/H Bubble Cleaning Machine Fruit And Vegetable Cleaning Machine

Brand Name: AINUOK
Model Number: AK-XCJ3, AK-XCJ4, AK-XCJ5, AK-XCJ6, AK-XCJ8, AK-XCJ10
MOQ: 1
Price: 3000USD-10000USD
Payment Terms: T/T
Supply Ability: 100 units per month
Detail Information
Place of Origin:
Anyang China
Certification:
CE, ISO9001
Delivery Power:
0.75kw - 1.5kw
Air Pump Power:
1.5kw - 4kw
Pump Power:
0.75kw - 2.2kw
Capacity:
500kg/h - 3000kg/h
Packaging Details:
Wooden crates, full cabinets
Highlight:

3000kg/h Bubble Cleaning Machine

,

500kg/h Bubble Cleaning Machine

,

500kg/h Fruit And Vegetable Cleaning Machine

Product Description
Fruit And Vegetable Cleaning Machine For Washing Fruit Chili
Product Overview

The Fruit and Vegetable Cleaning Machine is designed for cleaning the surface of fruits, vegetables, seafood, and similar products. It simulates manual cleaning methods using a mesh belt conveyor system combined with high-pressure water flow and bubble-generating technology to effectively remove surface impurities.

The machine utilizes high-pressure water jets to create a tumbling motion in the materials, effectively separating impurities from vegetable surfaces. Floating debris is removed through overflow channels, while sediment is discharged through dedicated outlets, maintaining water cleanliness and optimizing water utilization.

High-pressure nozzles at the rear section propel materials forward while the inclined lifting mesh belt, equipped with additional spray systems, provides secondary cleaning for thorough results.

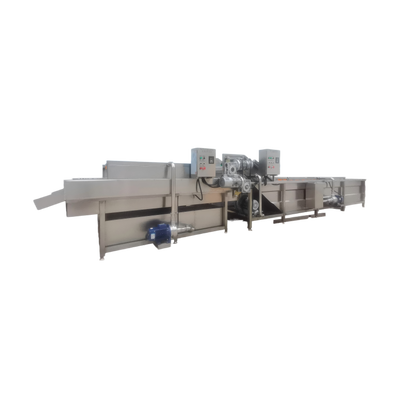

   500kg/H-3000kg/H Bubble Cleaning Machine Fruit And Vegetable Cleaning Machine 0

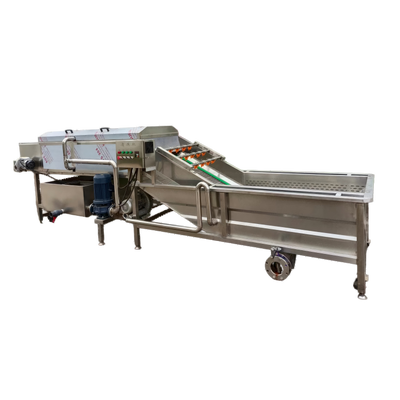

500kg/H-3000kg/H Bubble Cleaning Machine Fruit And Vegetable Cleaning Machine 1

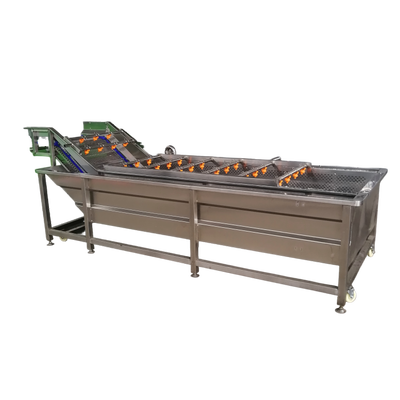

500kg/H-3000kg/H Bubble Cleaning Machine Fruit And Vegetable Cleaning Machine 2

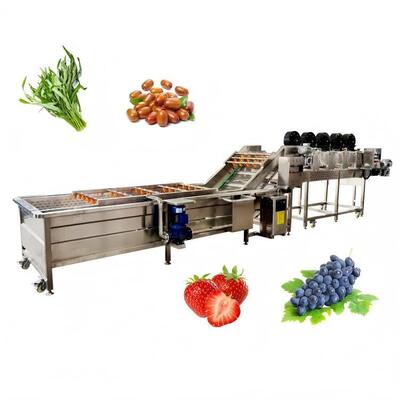

500kg/H-3000kg/H Bubble Cleaning Machine Fruit And Vegetable Cleaning Machine 3
Suitable Products

This cleaning machine is suitable for a wide range of products, including:

  • Root plants and vegetables
  • Meat products
  • Leaf and stem vegetables
  • Aquatic products
  • Seafood
  • Various fruits

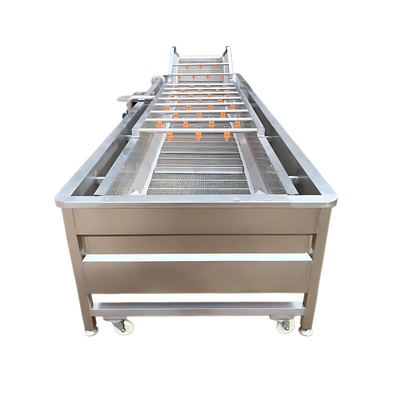

500kg/H-3000kg/H Bubble Cleaning Machine Fruit And Vegetable Cleaning Machine 4
Equipment Advantages

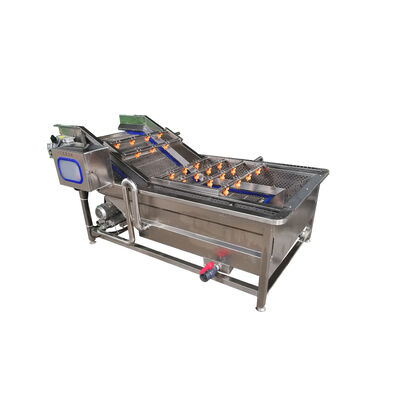

500kg/H-3000kg/H Bubble Cleaning Machine Fruit And Vegetable Cleaning Machine 5
Device Details

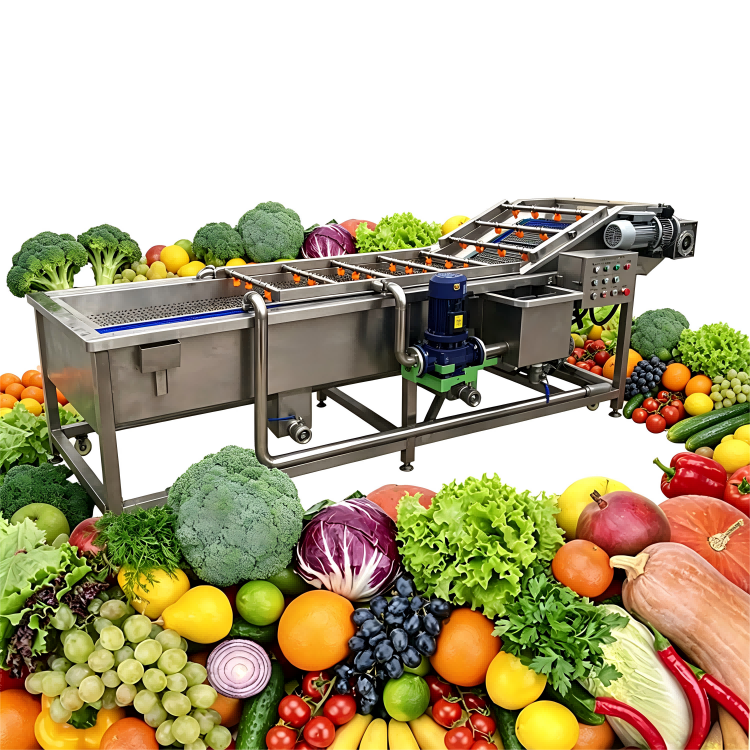

500kg/H-3000kg/H Bubble Cleaning Machine Fruit And Vegetable Cleaning Machine 6
Technical Specifications
Model AK-XCJ3 AK-XCJ4 AK-XCJ5 AK-XCJ6 AK-XCJ8
Delivery Power 0.75kw 0.75kw 1.1kw 1.5kw 1.5kw
Air Pump Power 1.5kw 1.5kw 3kw 3kw 4kw
Pump Power 0.75kw 0.75kw 1.5kw 1.5kw 2.2kw
Capacity 500kg/h 1000kg/h 1500kg/h 2000kg/h 3000kg/h
Machine Size (mm) 3080×1600×1250 3880×1600×1250 4980×1600×1250 5730×1600×1250 8165×1600×1250
Weight 400kg 650kg 850kg 1050kg 1550kg
Running Speed 1-5m/min 1-5m/min 1-5m/min 1-5m/min 1-5m/min
Mesh Belt Width 800mm 800mm 800mm 800mm 800mm
Number of Sprinkler Pipes 4+2 rows 6+2 rows 9+2 rows 12+2 rows 18+2 rows
Material SUS304 SUS304 SUS304 SUS304 SUS304
Bubble Hole 4 rows 4 rows 4 rows 4 rows 4 rows
Remark Removable casters Removable casters Removable casters Removable casters Removable casters
