SUS304 Bone Crusher Machine 20-60kg/H 1000-4000kg/H Meat Grinder Bone Crusher

SUS304 Bone Crusher Machine 20-60kg/H 1000-4000kg/H Meat Grinder Bone Crusher

Brand Name:	AINUOK
Model Number:	PG-180, PG-300, PG-400, PG-500, PG-600, PG-800, PG-1000
MOQ:	1
Price:	1200USD-17000USD
Payment Terms:	T/T
Supply Ability:	500 units per month

Detail Information

Product Description

Detail Information

Place of Origin:

Anyang China

Certification:

CE, ISO9001

Material:

Stainless Steel (SUS304)

Blade Hardness:

50 Degrees

Motor Power:

3-45 Kw

Weight:

160-4000 Kg

Packaging Details:

Wooden crates, full cabinets

Highlight:

SUS304 Bone Crusher Machine

4000kg/H Meat Grinder Bone Crusher

60kg/H Meat Grinder Bone Crusher

Product Description

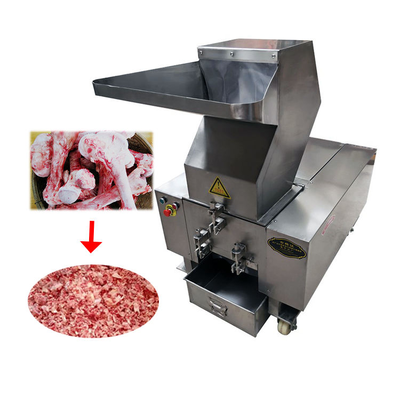

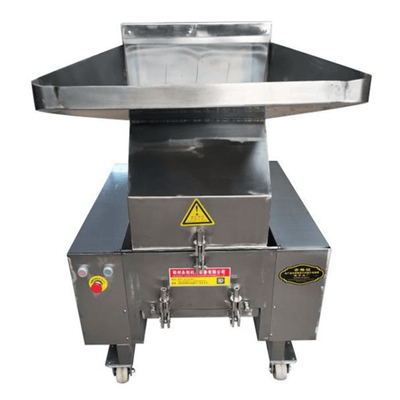

High Quality Stainless Steel Bone Crusher Machine For Animal Bones

Introduction

This bone crusher machine is constructed from stainless steel and meets food hygiene standards. It efficiently crushes various meat materials including cattle bones, sheep bones, pig bones, rabbit bones, duck bones, and fish bones. For optimal performance, we recommend regularly opening the feed inlet and screen to remove accumulated bone fragments, which enhances cutting efficiency and extends machine lifespan.

Applications

The bone crusher machine processes all types of animal bones including donkey, pig, cow, frozen fish, sheep, duck, horse, and chicken bones. It is widely used in sausage production, ham sausages, luncheon meats, meatballs, quick-frozen foods, flavorings, bone marrow extraction, bone meal, bone minerals, and bone broth. Additional applications include bone peptide extraction, biological products, convenience food packages, composite seasonings, pet food, and frozen meat processing.

Key Features

Double-layer sound insulation with thickened side plates
SUS304 stainless steel body compliant with food safety standards
Simple disassembly and assembly for easy cleaning and maintenance
SKD-11 blades with high hardness, temperature resistance, and durability
Pure copper motor with overload protection and reverse rotation safety features
Adjustable telescopic blades that can be removed and sharpened repeatedly
Clear control panel with intuitive operation
Wide feed inlet design with minimal residue
Optimized tool holder design for improved shear force and impact resistance
Enhanced front blade cutting angle for efficient and uniform particle crushing
Customizable screen aperture sizes for different discharge requirements
Extended receiving drawer for increased material storage capacity
Material baffle design to prevent splashing
Equipped with universal wheels for easy mobility
Multiple blade configuration options: 2-7 blades available
3Cr13 special plate cutting tools with vacuum heat treatment for 50-degree hardness

Technical Specifications

Model	Capacity (kg/h)	Power (kw)	Weight (kg)	Diameter Dimensions (mm)	External Dimensions (mm)
PG-180	20-60	3	160	180*165	450720900
PG-300	80-200	5.5	330	310*230	10807401160
PG-400	150-400	7.5	380	410*235	10808401160
PG-500	200-600	11	750	520*250	14509801380
PG-600	300-900	15	1250	600*300	160011001480
PG-800	800-2200	37	2500	800*650	170013201500
PG-1000	1000-4000	45	4000	1000*800	180015001550
